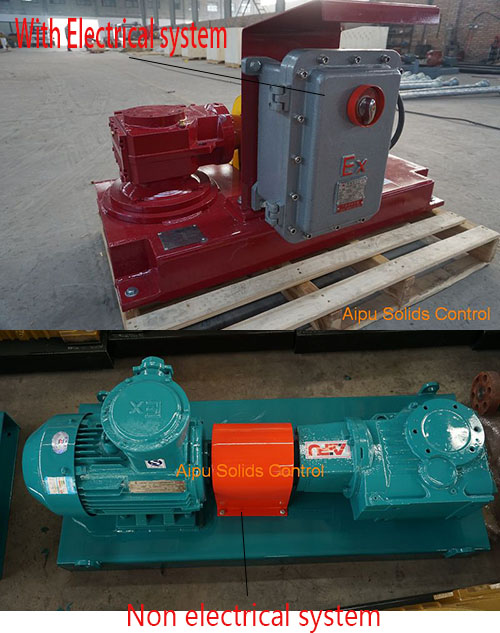

Mud Agitator With Electrical System Drilling Fluids Tank System Oilfield
Aipu mud agitators for you
Mud agitators have different models APMA7.5 and APMA11, APMA15, et cetera. Presently, the helical bevel geared ones are usually APMA7.5. While the APMA15 geared with a helical worm reducer. For mud agitators, we produce a gearbox driven by a 5.5kw, 7.5kw, 11kw, 15kw, 18.5kw, 22kw, and 30kw motor.
And the agitators can be the horizontal type or the vertical type. According to users’ preferences, we’ll provide different customization services. The impellers can be a single layer or double layer. The blades are the canted type for better agitation performance.
Technical parameters of APMA agitators
| Model | APMA5.5 | APMA7.5 | APMA11 | APMA15 |
| Motor | 7.5hp | 10hp | 15hp | 20hp |
| Impeller Speed | 60/70rpm or Customized |
| Single Impeller | 850mm | 950mm | 1050mm | 1200mm |
| Double Impeller | N/A | Up: 800 | Up: 850mm | Up: 950mm |
| Down: 800 | Down: 850mm | Down: 950mm |
| Ratio | 25.01:1 or Customized |
| Shaft Length | Depends on tank size |
| Power System | 380V/50Hz, 60Hz, 400V/50Hz, 60Hz, 415V/50Hz, 60Hz, 460V/50Hz, 60Hz, CUstomizable |
| Remark | Starter is optional |
Why use drilling mud agitators
Drilling mud agitators are popular auxiliary equipment used in drilling mud system. In the oilfield, mud tanks are the platform for a whole solids control system. On tanks, there are shakers, mud cleaner, centrifuge, pumps, agitators, and so on
Mud tanks are used to reserve drilling fluids. During whole well drilling, we need drilling mud and we maintain and process drilling mud for a better property and save drilling cost. Mud agitators will help us to mix or agitate the drilling fluids. Under the impellers’ rotation, the useful solids will suspend without sediment
We know the agitator is consisting of a motor and a reducer. Combining them together will get a proper turn speed. Under proper TOR the drilling fluids will be at a high property for better circulation throughout the mud system
Mud Agitator Options
Horizontal worm gear type agitator, this is the most popular agitator used in oil and gas mud tank because it’s cost-effective. There is coupler options for an agitator to protect gear or options without a coupler for saving cost.
A horizontal bevel gear type agitator is a very good option for larger torque and minimum footprint. The bevel gear is much higher torque compares to the worm gear. Better performance, higher cost.
A vertical agitator is well used for a vertical tank with a small footprint but higher height.
AIPU supply mud agitator for above options as per buyer’s request and cost budget. Other than agitator, AIPU supply a series equipment for mud tank or a whole tank with all tank attachment.
How to select mud agitator?
According to mud tank specification and drilling mud property(volume, dimension, SG)
Confirm the exact model and quantity we need (usually 3 meters per set)
Confirm the detail specs of impeller and shaft per tank size(tank height/depth)
To check which type reducer you prefer(Helical worm, helical bevel)
Other special requirements (Reduce ratio, installation position, color)
At AIPU you can get many flexible configurations and solutions on the equipment/system. Besides above-listed information, some configuration is customizable. For any question or demand, just feel free to contact us.
