API Drilling Fluids Poor Boy 1400mm Mud Gas Separator

Red Liquid Poor Boy Degasser To Remove The Invaded Gas Drilling Fulids During Oil & Gas Well Drilling

Poor boy degasser is a kind of specific equipment to remove gas invaded in the drilling fluids during oil and gas exploration. It is mainly used to remove big bubbles above φ3mm in diameter and these bubbles refer to expanded gases in the fluids that fill in some parts of well annulus. Well kick even spilling out to the rotary table will easily occur if they are not removed.

Details of APMGS poor by degasser

At AIPU Solids control, the liquid gas separator popular type is APMGS1000, APMGS1200. However, some time users will request special design for special condition. For example, there are APMGS600, APMGS800, APMGS1400. The difference is vessel diameter and the handling capacity. Different size degasser holding different size discharge line.

We provide customization service on many equipment. What is the customizable option on the liquid gas separator. Firstly, the material can be common carbon steel for some little or none H2S content places or drilling sites, if necessary, we suggest the 16Mn steel sheet to resist the H2S gas. Furthermore, the vessel body internal diameter can be customized. We have ever made the APMGS500 degasser holding 500mm diameter. Then, the support legs can be fixed or elevated type. And the vessel can be folded down lay on the special support leg for better protection during transportation.

For the colors, almost of poor boy degasser are painted with red color. So we don't suggest other surface coat oil. It means warning and danger.

Poor boy degasser application:

Mud Gas Separator serves as an ideal device if well blowout or kick is encountered or if operators apply under-balanced mud column in drilling processes. APMGS series Mud gas separator is primarily used to remove the enormous free gas from drilling fluids, including poisonous gases like H2S. Field data shows it is a fairly reliable and vital safety equipment.

Poor boy degasser features & benefits:

1. Separates and discharges the enormous free gas from drilling fluids, including poisonous gases like H2S.
2. Separated gas is carried by discharge lines to safe area for combustion.
3. The unit is ruggedly built and coated with anti-corrosion epoxy so as to ensure long service life when processing hazardous and toxic gases.

What makes poor boy degasser price?

Degasser size with tank vessel 800mm, 1000mm or 1200mm size for different mud flow capacity and price is higher for larger size degasser.
Pressure request makes very different price, the higher pressure the higher price. All AIPU supplied degasser is non-pressure vessel for cost effective. But many site will require pressure vessel for degasser with a certain pressure figure and much higher price.
Extra request on degasser design like on degasser size, customized degasser skid, pipeline arrangement, etc.

AIPU is able to supply a degasser package with a set of poor boy degasser and a set of flare ignition device and a certain length of pipeline between to 2 equipment. The flare ignition device is used to burn waste gas 30 meters away from drilling site. More information, please click AIPU website.

The specifications of poor boy degasser at AIPU

1400mm Mud Gas Separator

API Mud Gas Separator

H2S Poor Boy Degasser

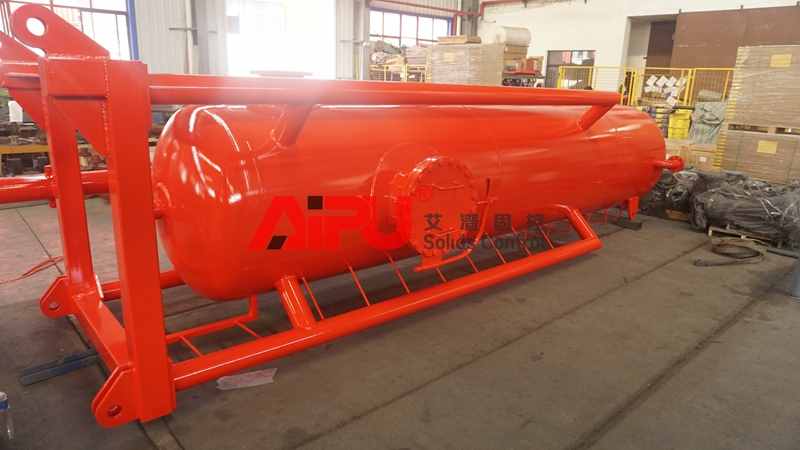

API Drilling Fluids Poor Boy 1400mm Mud Gas Separator Images
